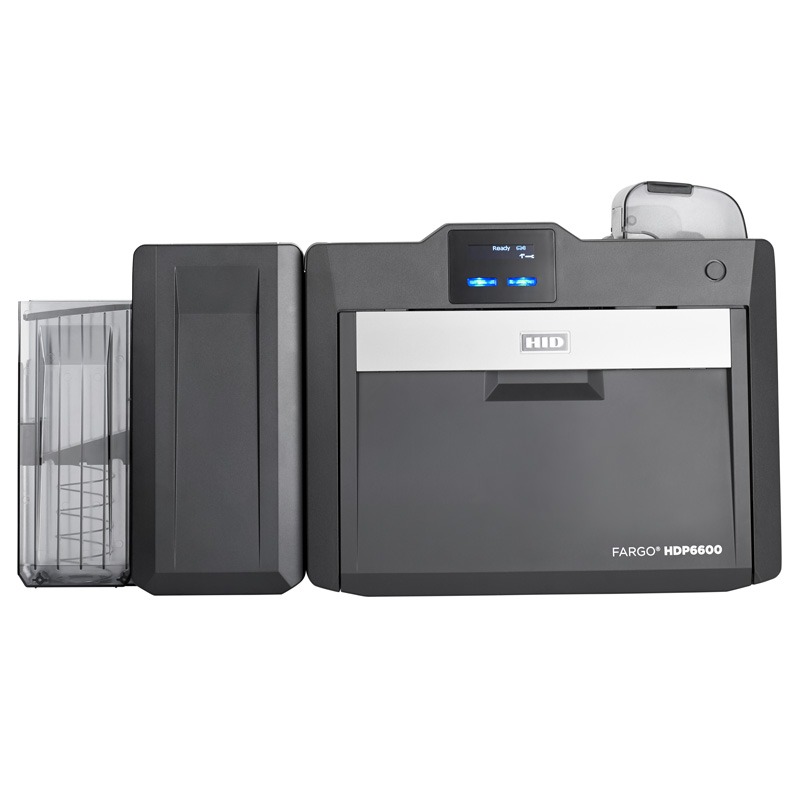

The FARGO HDP6600 from HID is ideal for organizations of any size that need retransfer printing technology to routinely issue secure and durable, high definition IDs or cards at high speeds. As a cost-effective, eco-friendly and reliable solution, the HDP6600 provides high resolution 600 dpi printing capability for superior text and image quality.
Designed to meet the needs of cost- and efficiency-conscious organizations, the HDP6600 produces cards at unprecedented speeds and leverages HID Global’s innovative wasteless lamination technology―helping cut your high-volume lamination materials costs by up to 40%.
The HDP6600 also features HID’s patent-pending iON™ technology which allows the unit to reach optimal operating temperature in under 60 seconds, expediting the retransfer printing and lamination processes. With its built-in, intelligent temperature control, the HDP6600 consumes less energy over comparable card printing and lamination systems. For larger projects, this energy efficiency translates to significant savings.
Only the HID FARGO HDP6600 offers all of the following in a single solution:
Built on six generations of proven retransfer technology, the HDP6600 offers the versatility to meet your card application needs today and in the future.
Fast, innovative, feature-rich and reliable ― the HID FARGO HDP6600 sets the new customer demanded standard in retransfer printing.
| Side printing | Single or dual |
|---|---|
| Print Method | HDP® Dye-Sublimation | Resin Thermal Transfer |
| Resolution | 600 dpi |
| Print Speed | 16 seconds per card / up to 230 cards per hour (YMCK with transfer) |
| Memory | 1 GB RAM |
| Accepted Card Sizes | CR-80 |
| Warranty | 4 years (printer); Lifetime (printhead) |
Designed to meet the needs of medium-to-large corporations, universities, healthcare facilities,
government agencies and service bureaus, the HDP6600 is the new customer demanded standard in retransfer printing.
Same as the HDP5000, the HDP6600 model is fully field-upgradeable to:
• 600dpi High Definition Printing technology, for exceptional full color quality and durability.
• Ability to print up to 230 cards per hour (YMCK with transfer)
• iONTM technology for unparalleled printer readiness and intelligent temperature control
• Shorter “heat up” times expedite the entire retransfer printing and lamination process
• Simultaneous print and retransfer (increases speed for batch printing)
• GreenCircle® certified energy savings
• Retransfer-based wasteless lamination
| 94600 | Single-Side Printer |
| 94640 | Dual-Sided Printer |
| 94050 | Dual-Sided Printing Module |
| 94051 | One patch material Lamination Module |
| 94052 | Two patch material Lamination Module |
| 94053 | Card Flattener Module |
| 94054 | Contactless Encoder |
| 94056 | Mag Encoding module |
| 94057 | Contact Chip Encoder |
| D910536-01 | Card Hopper Cartridge (100 cards) |
| 89223 | Card Hopper with lock – (200 cards) |
| MDP-01835 | Card Stacker (200 cards) |
| 86094 | Printhead (600dpi) |
| 84900 | HDP film – thermal transfer/protection film (1500 prints) |
| 84911 | YMCK – Yellow, Magenta, Cyan, Black (750 prints) |
| 84912 | YMCKK – Yellow, Magenta, Cyan, 2 resin Black (600 prints) |
| 84915 | YMCKHK – Yellow, Magenta, Cyan, Black and a Heat seal panel (600 prints) |
| 84916 | YMCFK – Yellow, Magenta, Cyan, Black and a dye-based fluorescing panel |
| 84917 | K – Premium Resin Black (3000 prints) |
| 88933 | Cleaning kit, incl. 4 Printhead Cleaning Swabs, 3 Alcohol Clean Cards, 10 Adhesive Cards, 10 Pads |
| 86004 | Cleaning Rollers – 10 pcs |
| 82700 | PolyGuard polyester chips, thick. 25 μ, 1000 cards |
| 82702 | PolyGuard, thick. 25 μ with High Secure Orbit design Hologram, 1000 cards |
| 82710 | PolyGuard polyester chips, thick. 25 μ, half patch for magstripe, 1000 cards |
| LC-1500 | Recombination Fees (moving existing master for new roll system) — holographic elements only |
| LC-1600 | Additional Visual Security Elements Fee — Mica Inks and UV Inks |
| LC-200 | Origination Fees — ONE TIME SETUP |
| LC-2500 | Origination Fees — Secure Random Image Placement |
| LC-3500 | Origination Fees — Secure Registered Image Placement |
| LC-9000 | Origination Fees — Secure Registered Image Placement |
| LC-12000 | Origination Fees — High-Secure Registered Image Placement |
| LC-14000 | Origination Fees — HDP Film (High-Secure Registered Image Placement) |
| — | M.O.Q. = 12 rolls – 25% off from 20 rolls – 50% off from 50 rolls – 65% off from 100 rolls |
| — | PolyGuard polyester patch, thick. 25 μ, 1000 cards — Whole Patch |
| — | PolyGuard polyester patch, thick. 25 μ, 1000 cards — with Smart Chip cut-out |
